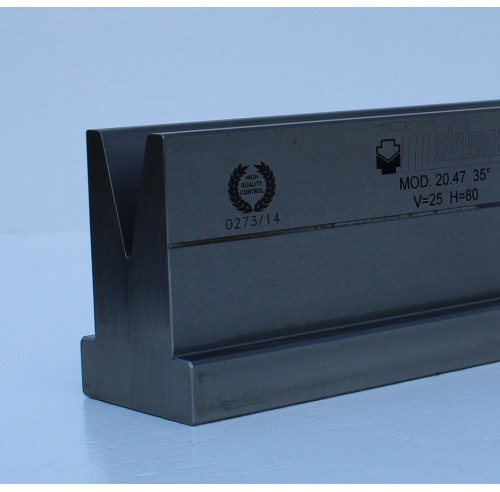

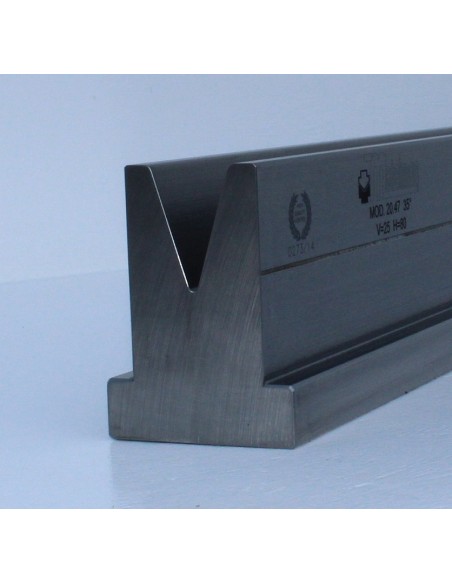

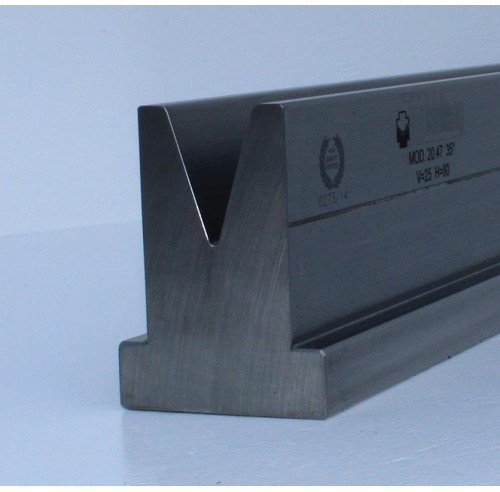

20.47/35º DIE PROMECAM

20.47/35º DIE PROMECAM

20.47/35º
New

Die PROMECAM mod. 20.47/35º, V=25 m/m and manufactured in steel C-50 tempered by induction on the working areas (hardness 52-58 HRC) and rectified.

50 Ton/mt

H80-35º L=835 m/m 15Kg

H120-30º L=835 m/m 28Kg

At the bottom of this page you can DOWNLOAD the plane in PDF and DWG with 1:1 scale.

Measures in millimeters (1 millimeter = 0.0393701 inches)

5
$400.75
-20% $500.94
Angles
  • 35º H80 - 30º H120
V Die
  • V 25 m/m
Height (H)
  • Height 80 m/m
  • Height 120 m/m
LENGTH
  • 835 m/m
  • 415 m/m
  • 835 m/m sectioning
Quantity

Description

Die PROMECAM mod. 20.47/35º, manufactured in steel C-50 tempered by induction on the working areas (hardness 52-58 HRC) and rectified.

T-shape, particulary narrow, is given to realise short counter-folds, as the "V" is at the end of the die.

Press brake die for machines type; ACL - Acurpress - AM Machinery - Adira - Amada - Astrida - Axial - Baykal - Blecken - Boschert - Boutillon - Casanovas - Colgar - Colly - Dener - Durma - Ermaksan - Farina - Feysama - Ferry - Gasparini - Güifil - Haco - Hidrogarne - Korpleg - - Lami-Nova - Llavia Cumsa - Mebusa - Mecos - Megobal - Montgri (Combi) - Omag - Prada Nargesa - Prima Power - Promecam - Rico - Rocipleg - Safan - Salvagnini - Schiavi, etc

DOWNLOAD
