See it on YOUTUBE
At the bottom of this page you can DOWNLOAD the plane in PDF with 1:1 scale.
Measures in milimeters (1 milimeter = 0,0393701 inches)

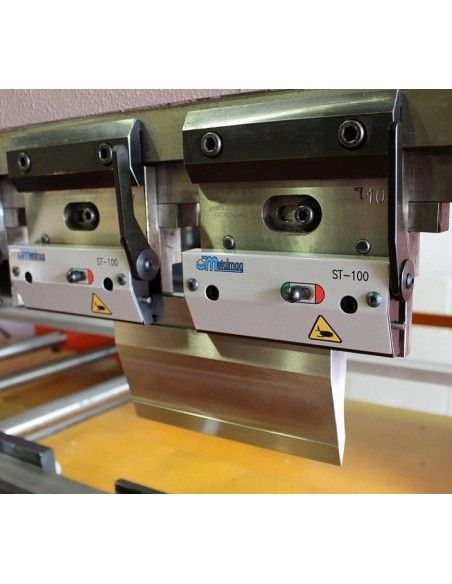

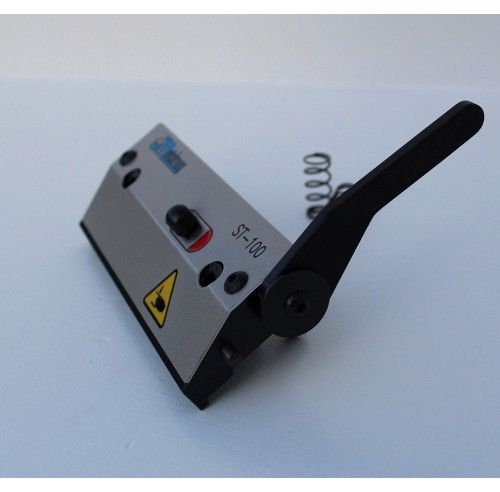

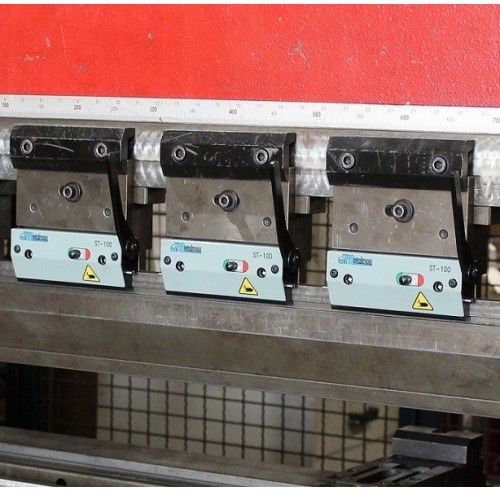

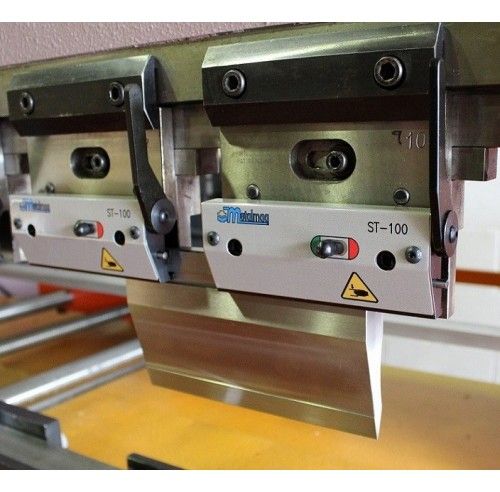

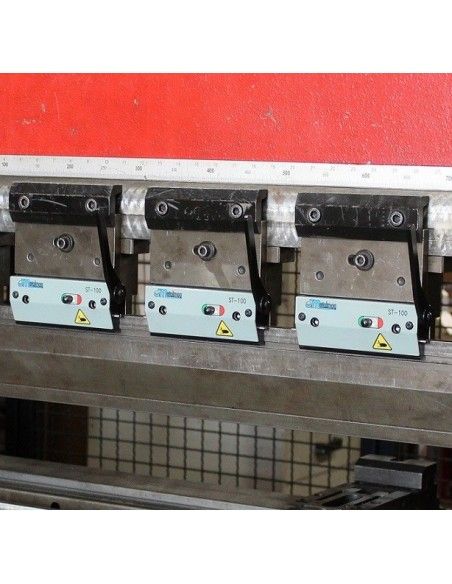

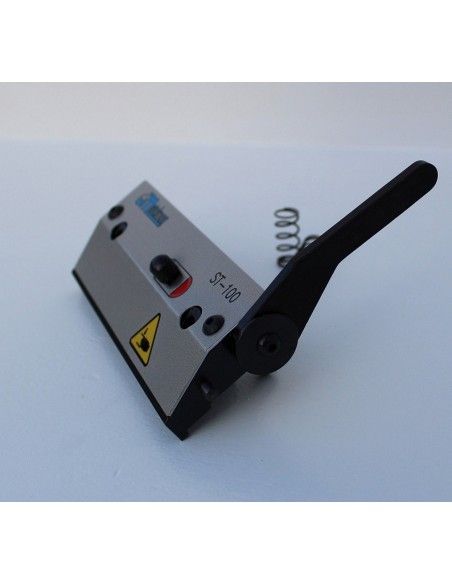

1 STEP Handle up; the punches are perfectly fixed.
2 STEP Handle in intermediate position, the punches can be moved horizontally.
3 STEP Handle in lower position + button on the red part; the punches can be extracted vertically, gaining a lot of preparation time !!
2 YEARS GUARRANTEE
The guarantee of the Clamp ST-100 is 2 years from the date of invoice. The guarantee includes the replacement of defective or damaged parts. Except when it was due to misuse or negligence of the customer.
The guarantee does not cover travel or shipping costs. Repairs will be carried out at our facilities in Gavà (Barcelona-Spain). It is recommended to keep the packing of the ST-100 Clamp until the end of its warranty.
Press brake intermediate for machines type; ACL - Acurpress - AM Machinery - Adira - Amada - Astrida - Axial - Baykal - Blecken - Boschert - Boutillon - Casanovas - Dener - Durma - Ermaksan - Farina - Feysama - Ferry - Gasparini - Güifil - Haco - Hidrogarne - Korpleg - - Lami-Nova - Llavia Cumsa - Mebusa - Mecos - Megobal - Montgri (Combi) - Omag - Prima Power - Promecam - Rico - Rocipleg - Safan - Salvagnini - Schiavi, etc
